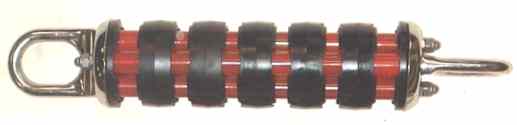

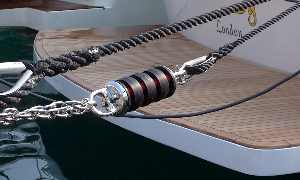

Is a mooring device produced in two dimensions for vessel till 40 m (120 ft) lenght Is the only one able to support very high loads (3-4 tons!) this by its very high tecnologist components as:
Hardware realized in stainless steel HR (17/4/PH*) with resistanceb of 120-140 Kg. x square mm
Compression stopper realized in nylon U.V. protected
Elastomers element with exceptional propeties (-40°C ÷ +120°C) and with a life of minimum of 400.000 maximal compression
Dimension and weights reducead at 1/4 compeared to others competitor device
| load of break aisi 316 |
load of break Titanio |
load of break 17/4PH |
60÷80 Kg./mm2 |
90÷94 Kg./mm2 |
120÷140 Kg./mm2 |
Important notices
The thechnology and the modulation of the "MASTER MOORING" system due to its elastomers produced with different capacity (60/70/90 shore degrees) enable us to satisfay every mooring needs of yours for boats from 16 tons up to 130 tons.
Master mooring 20 - cod. 806-0020 |
| 806-0020 |
Weight Kg. 3.00 |
Lenght 400 mm. |
Diameter 100 mm. |
for boat up tons 16 ÷ 25 |
| 806-0021 |
Weight Kg. 3.00 |
Lenght 400 mm. |
Diameter 100 mm. |
for boat up tons 25 ÷ 35 |
| 806-0022 |
Weight Kg. 3.00 |
Lenght 400 mm. |
Diameter 100 mm. |
for boat up tons 35 ÷ 45 |
Master mooring 30 - cod. 806-0030 |
| 806-0030 |
Weight Kg. 3.40 |
Lenght 460 mm. |
Diameter 100 mm. |
for boat up tons 45 ÷ 55 |
| 806-0031 |
Weight Kg. 3.40 |
Lenght 460 mm. |
Diameter 100 mm. |
for boat up tons 55 ÷ 70 |
| 806-0032 |
Weight Kg. 3.40 |
Lenght 460 mm. |
Diameter 100 mm. |
for boat up tons 70 ÷ 90 |
Master mooring giga - cod. 806-0040 |
| Weight Kg. 4.10 |
Lenght 560 mm. |
Diameter 100 mm. |
for boat up tons 90 ÷ 130 |
|
